Heating Element Replacement in Eloy, AZ 85131
When hot water fades halfway through a shower, most Eloy homeowners blame the whole water heater — but often only a $30 part has failed.
- 24/7 Emergency Service
- East Valley Coverage
- Upfront Guidance
In Short
When hot water fades halfway through a shower, most Eloy homeowners blame the whole water heater — but often only a $30 part has failed. Heating element replacement in Eloy, AZ 85131 is straightforward for a pro, once the right diagnosis is made.
Why Eloy Burns Through Heating Elements
Heating elements are consumables in Eloy — hard water makes sure of it. I-10 corridor city; mix of older homes, manufactured housing, agricultural worker housing. Skydive Arizona destination. Across that stock, Eloy electric tanks commonly run original elements at exactly the age when scale kills them. The very hard water in Eloy coats every element sheath in insulating scale, while sediment buries lower elements until they overheat in their own pocket. Very hard water; City of Eloy municipal supply. What local techs keep seeing: Manufactured homes dominate — tight closet/pantry installs; Older units often neglected; first service call is the replacement call; Summer heat + hard water = fastest tank degradation in the service area. For Eloy homeowners the takeaway is concrete: expect elements on a shorter cycle here, flush annually, and ask about foldback low-watt-density replacements that run cooler under scale.
How Water Heater Elements Work

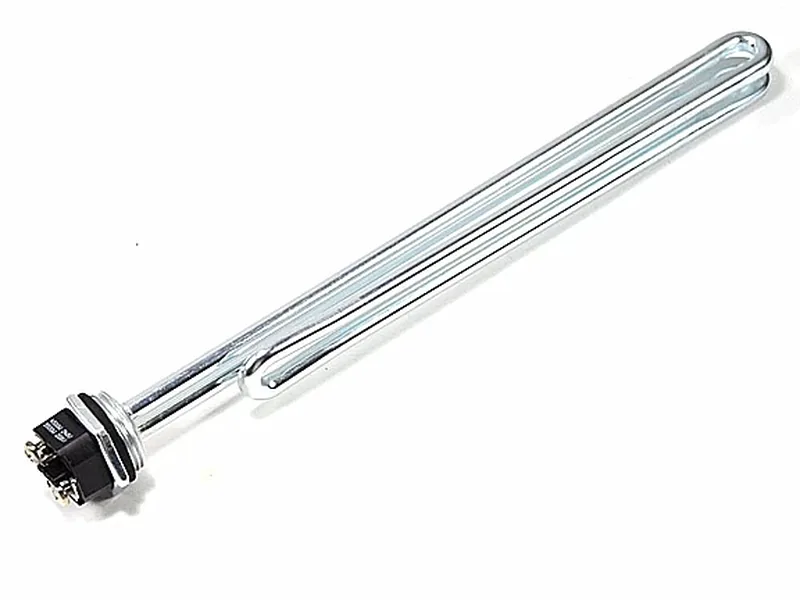

Elements screw into the tank wall through 1-1/2 inch openings sealed by gaskets, with their electrical terminals exposed under access covers on the tank's side. The sheath must stay fully submerged whenever power is applied; even a few seconds of dry-firing — power with the element exposed to air — burns the element out instantly. That single fact explains most premature failures after DIY replacements and tank drains. In Eloy, hard water gives heating elements one of the shortest lifespans in the country.
A standard electric water heater carries two elements — upper and lower — each paired with its own thermostat, all running on 240 volts. The upper thermostat and element handle the top third of the tank and get first priority; once the top is satisfied, power switches to the lower element, which does the heavy lifting of heating the full tank. Only one element ever draws power at a time, which is why a single failed element produces such distinctive symptoms. Manufactured homes dominate — tight closet/pantry installs.
In Eloy, I-10 corridor city; mix of older homes, manufactured housing, agricultural worker housing. Skydive Arizona destination. That stock profile is exactly why element replacement is such a frequent call in Eloy — aging electric tanks running original elements in punishing water. Manufactured homes dominate — tight closet/pantry installs; Older units often neglected; first service call is the replacement call; Summer heat + hard water = fastest tank degradation in the service area
Signs an Element Has Burned Out
The reset button on the upper thermostat adds one more clue. If it has tripped and will not stay reset, the tank has overheated — possibly from a thermostat stuck closed, possibly from sediment insulating the sensor. Do not just keep resetting it; the ECO is a safety device telling you something upstream is wrong. Note which symptoms you have and in what order they appeared; that timeline lets a tech walk in already knowing which element and which thermostat to test first. Older units often neglected; first service call is the replacement call.
Lukewarm water that never gets truly hot, regardless of how long you wait, usually means one element is doing the work of two. The surviving element cycles normally but cannot keep up with demand, so the tank hovers twenty or thirty degrees below the setpoint. Check the simple things first: is the breaker tripped, and are both thermostats set to the same temperature? Mismatched thermostat settings — one at 120, one at 90 — produce the same symptom as a failed element and cost nothing to fix. Summer heat + hard water = fastest tank degradation in the service area.
Eloy service notes: I-10, SR-87, Sunshine Blvd — most element jobs here are completed in a single visit. Manufactured homes dominate — tight closet/pantry installs; Older units often neglected; first service call is the replacement call; Summer heat + hard water = fastest tank degradation in the service area
Why Elements Fail Faster in Arizona Water
Sediment makes it worse. Calcium settles to the tank floor and can eventually mound up around the lower element, trapping heat against the sheath. The element ends up cycling against its own insulation, overheating in a pocket of superheated water and steam. You hear this as the classic popping and rumbling. By the time the noise is loud, the lower element is living on borrowed time — which is why the noise-to-failure pipeline is so predictable in desert homes. Very hard water; City of Eloy municipal supply.
Heat compounds everything in desert installations. Garage-mounted tanks in the Valley sit in 110-degree-plus air for months, and while that barely affects heating performance, it accelerates the aging of thermostats, wiring insulation, and gasket materials around the elements. Thermostats that drift out of calibration make elements cycle erratically — short-cycling wears the resistor wire faster than steady operation. In Eloy, hard water gives heating elements one of the shortest lifespans in the country.
The housing picture in Eloy explains the volume: I-10 corridor city; mix of older homes, manufactured housing, agricultural worker housing. Skydive Arizona destination. A large share of electric water heaters in Eloy are deep into the age range where elements fail.
What Element Replacement Involves
The details separate good work from repeat failures. Fresh gaskets every time — reusing a compressed gasket invites a slow weep that rots the access area. Terminal screws torqued properly, not just snug, because loose high-amperage connections arc and melt. Wire insulation inspected for heat damage while the covers are off. And the thermostats reset to matching temperatures, usually 120 degrees, so the two elements hand off cleanly. A careful tech also gives the tank a partial flush while it is drained down, since the sediment that killed the old element is still in there. Manufactured homes dominate — tight closet/pantry installs.
Diagnosis comes before wrenches. The tech kills power at the breaker, verifies zero voltage with a tester at the elements, then checks each element's resistance with a multimeter — a healthy 4500-watt element reads around 12 to 13 ohms; an open (infinite) reading means burned out, and continuity to ground means a dangerous short. Thermostats get tested too, because a failed thermostat mimics a failed element and replacing the wrong part fixes nothing. Older units often neglected; first service call is the replacement call.
One local wrinkle: Older units often neglected; first service call is the replacement call. Practically speaking, most Eloy electric heaters sit where garage heat and dust reach them, which ages thermostats and connections alongside the elements themselves.
Picking the Right Replacement Element
Thermostats deserve the same paired thinking. If an element failed from overheating caused by a sticking thermostat, the thermostat must go too, or the new element inherits the same killer. A pro tests both thermostats during any element call and will tell you straight whether they are healthy or suspects. Bundling elements and thermostats in one visit costs less than two visits six months apart — the pattern Eloy homeowners know too well once they have lived through it. Summer heat + hard water = fastest tank degradation in the service area.
There are two physical styles — screw-in and bolt-in (flange) — and they are not interchangeable. Most modern residential tanks use screw-in elements with the standard 1-1/2 inch thread; some older or commercial units use a four-bolt flange. The tech identifies the style before ordering, because a wrong-style element means a wasted trip. Wattage options on the shelf (3500, 4500, 5500) tempt DIYers to upsize for faster recovery, but the circuit amperage must support it — 5500 watts needs a 30-amp circuit where 4500 needs 25 — and upsizing without verifying the breaker and wire gauge is a fire risk. Very hard water; City of Eloy municipal supply.
Water chemistry in Eloy is the headline. Very hard water; City of Eloy municipal supply. Manufactured homes dominate — tight closet/pantry installs; Older units often neglected; first service call is the replacement call; Summer heat + hard water = fastest tank degradation in the service area With hardness like the Valley's, Eloy elements live the short, scaled life described above — flushing is not optional here.
Making New Elements Last Longer
A water softener changes the game entirely. Softened water drops hardness to near zero, which nearly stops scale formation on elements — the difference in element life between softened and unsoftened Valley water is measured in years. If a softener is not in the plans, at least keep the tank's temperature at 120 degrees rather than higher; every extra ten degrees accelerates scale precipitation noticeably. In Eloy, hard water gives heating elements one of the shortest lifespans in the country.
Consider upgrading to foldback low-watt-density elements at the next replacement if standard elements are in there now. The cooler-running sheath resists scale adhesion meaningfully in hard water, and the price difference is small against the labor of the visit. Pair that with a sediment-reducing routine — annual flushes, 120-degree setpoint — and Valley elements that used to die in three to four years routinely stretch toward seven or eight. Manufactured homes dominate — tight closet/pantry installs.
For Eloy homeowners, the pattern is familiar: Manufactured homes dominate — tight closet/pantry installs; Older units often neglected; first service call is the replacement call; Summer heat + hard water = fastest tank degradation in the service area I-10 corridor city; mix of older homes, manufactured housing, agricultural worker housing. Skydive Arizona destination. Older tanks plus hard water equals Eloy's most common electric-heater service call.
Heating Element Replacement in Eloy, AZ 85131
I-10 corridor city; mix of older homes, manufactured housing, agricultural worker housing. Skydive Arizona destination. Across that mix, electric tanks tend to run original elements right at the age when Eloy water kills them — which is why lukewarm-water calls here so often end with an element swap.
Getting help is straightforward: I-10, SR-87, Sunshine Blvd, and most element replacements in Eloy are completed in a single visit once diagnosed. Dispatchers serving Eloy know the local failure patterns, so describing your symptoms — pilot behavior, water temperature, where water appears — gets the right parts on the truck the first time.
Most Eloy heaters sit in garages or utility closets, where summer heat and dust reach every component — the exact conditions that age thermostats and scale up elements. And the water does the rest: Very hard water; City of Eloy municipal supply.
One call to (833) 713-2101 connects Eloy homeowners with a local pro for a hot-water trouble — same-day service in most cases, and honest repair-or-replace advice once the unit is inspected.
Frequently Asked Questions
Will a higher-wattage element heat water faster?
It would, but the circuit must support it — and in most Eloy homes it does not. A 4500-watt element needs its matched breaker and wire gauge; jumping to 5500 watts on the same circuit risks overheating the wiring. The safe path to faster recovery is a correctly matched element in a descaled tank, which often recovers dramatically faster than the scaled-up original did. If you want more hot water capacity, that is a tank-size conversation, not an element-wattage one. Call (833) 713-2101 for an honest assessment.
Is it the element or the thermostat?
They mimic each other, which is why both get tested. A failed thermostat can lock out a healthy element — the upper thermostat stuck open never hands power to the lower element, looking exactly like a dead lower element. The multimeter sorts it out: elements get resistance tests, thermostats get continuity tests through a heating cycle. In Eloy, a good tech tests both on every no-hot-water call rather than guessing. If you are seeing lukewarm water or a tripped reset button, call (833) 713-2101 and both will be checked in one visit.
Why does my hot water run out so fast?
The lower element has likely failed. The upper element still heats the top of the tank, so the shower starts hot — then the cold water below, never heated, arrives and the temperature collapses. Heavy sediment can also shrink effective capacity by displacing water and insulating the lower element. In Eloy, both usually arrive together: scale kills the lower element while sediment steals tank volume. A flush plus element testing during one visit from (833) 713-2101 addresses both at once.
Why is my water lukewarm but the breaker isn't tripped?
That is the classic one-dead-element pattern. The surviving element keeps heating but cannot keep up, so the tank hovers well below the setpoint without ever tripping anything electrical. Check that both thermostats are set to the same temperature first — a mismatched setting mimics the symptom for free. If settings match and water stays lukewarm, an element has almost certainly burned open. A tech in Eloy can confirm with a resistance test in minutes; call (833) 713-2101.
How long do heating elements last in Arizona?
In Eloy water, expect three to six years for standard elements — roughly half the soft-water lifespan — because scale insulates the sheath and overheats it. The lower element always dies first since sediment buries it. Foldback low-watt-density elements stretch that toward seven or eight years here, and a water softener plus annual flushing stretches it further. If your elements are past five years and the hot water is fading, replacement is the likely fix; call (833) 713-2101 for a test before assuming the whole tank is done.
