Water Heater Pan Installation in Fountain Hills, AZ 85268
Water heaters fail; that is a matter of when, not if.
- 24/7 Emergency Service
- East Valley Coverage
- Upfront Guidance
In Short
Water heaters fail; that is a matter of when, not if. In Fountain Hills, AZ 85268, a properly installed drain pan with a clear drain line catches the leak and routes it outdoors before it ruins floors, walls, and ceilings.
Water Heater Pan Installation in Fountain Hills: The Local Picture
Pan installation in Fountain Hills, AZ 85268 is really about the whole assembly: pan, drain line, and termination point. Upscale planned community; 1970s-2000s homes, many with mountain views, larger lots. Famous fountain. Affluent homeowners expect premium service and communication Hillside lots can complicate drainage and pan installs Very hard EPCOR water; high mineral content. Skip any one of those three and you own a decoration, not protection. We install the complete system — sized pan, minimum 3/4-inch drain pitched to daylight, and a termination you can actually see and check — at Fountain Hills homes every week. Call (833) 713-2101.
What a Water Heater Drain Pan Actually Does
A water heater drain pan is a shallow, watertight tray that sits under the tank and catches water from slow leaks, T&P valve discharges, and condensation drips, then funnels it through a drain line to the outside of the home. It will not contain a catastrophic tank rupture — nothing short of a floor drain can — but catastrophic ruptures are rare. What pans catch, every single day in Fountain Hills, are the slow failures: the weeping drain valve, the pinhole at a weld, the T&P valve dribbling from thermal expansion. Those are the leaks that silently destroy subfloors, breed mold inside wall cavities, and stain ceilings for months before anyone notices.
Upscale planned community; 1970s-2000s homes, many with mountain views, larger lots. Famous fountain. In Fountain Hills, AZ 85268, the stakes for that slow leak depend entirely on where the heater sits — and local installs put heaters in some unforgiving spots. Affluent homeowners expect premium service and communication
Think of the pan as early warning plus damage control in one. Water in the pan tells you the heater needs attention while the problem is still small, and the drain line carries that water outside instead of into your home's structure. For Fountain Hills homeowners, the math is simple: a pan installation costs a small fraction of one ceiling repair, one mold remediation, or one flooring replacement. If your heater lacks a pan — or has one with no drain line, which we see constantly — call (833) 713-2101 and we will set it up right.
When a Pan Is Required: Code and Common Sense in Fountain Hills
Plumbing codes adopted across Arizona — the version enforced in Fountain Hills included — require a drain pan under a water heater wherever a leak could cause structural damage — which covers attics, upstairs closets, installations over finished living space, and anywhere the unit sits above a ceiling. The pan must be at least 1.5 inches deep, sized to catch drips from the full tank footprint, and connected to a drain line that terminates outside the home where the discharge is visible. That last requirement exists for a reason: a pan draining where nobody can see it defeats the early-warning purpose.
Upscale planned community; 1970s-2000s homes, many with mountain views, larger lots. Famous fountain. Many Fountain Hills, AZ 85268 homes we visit were built before current pan rules were consistently enforced, so grandfathered installs without pans are everywhere. Hillside lots can complicate drainage and pan installs Code aside, our rule of thumb is simpler: if a leak at your heater's location would damage anything you care about, it needs a pan and a drain.
There is one more scenario Fountain Hills homeowners miss: the replacement. When a new heater goes in, that is the ideal moment to add or upgrade the pan, because the tank is already disconnected and lifted. We include pan evaluation with every replacement we do — if your existing pan is undersized, cracked, or draining nowhere, we will tell you before the new tank goes in. Retrofitting a pan under an existing heater is absolutely possible too; it takes more labor since we must disconnect, lift, and reconnect, but it beats discovering you needed one during a leak. Call (833) 713-2101 for an honest assessment at your Fountain Hills home.
Pan Materials and Sizing: Getting It Right
Not all drain pans are equal, and the bargain-bin choice is a false economy in Fountain Hills heat. Plastic (PVC) pans are inexpensive and won't corrode, but thin ones can warp or crack under a full 50-gallon tank in a 120-degree garage over the years. Heavy-gauge aluminum pans cost more and handle heat and weight better, though they need protection from galvanic corrosion where they contact dissimilar metals. For most Fountain Hills installs we recommend a sturdy pan matched to the environment: aluminum for hot garages and attics, quality heavy plastic where budget matters and conditions are mild. Either way, it must be rated for water heater use — not a repurposed tray.
Very hard EPCOR water; high mineral content. Mineral-heavy drips sit in pans between leaks, and in Fountain Hills, AZ 85268 that residue is abrasive and corrosive to thin materials — another reason we don't install flimsy pans. Affluent homeowners expect premium service and communication
Sizing is where DIY pan jobs most often fail. The pan must extend under the entire tank footprint with room for the drain valve and T&P discharge piping to drip into it — a pan that the tank overhangs is decorative. Standard residential tanks need 24 to 28-inch pans depending on diameter, and we measure your actual unit rather than guessing. Depth matters too: 1.5 inches minimum, deeper for attic installs where a larger catch volume buys critical time before overflow. When we install your pan in Fountain Hills, we size it to your tank, your space, and your risk — then we prove the drain works before we leave. Call (833) 713-2101.

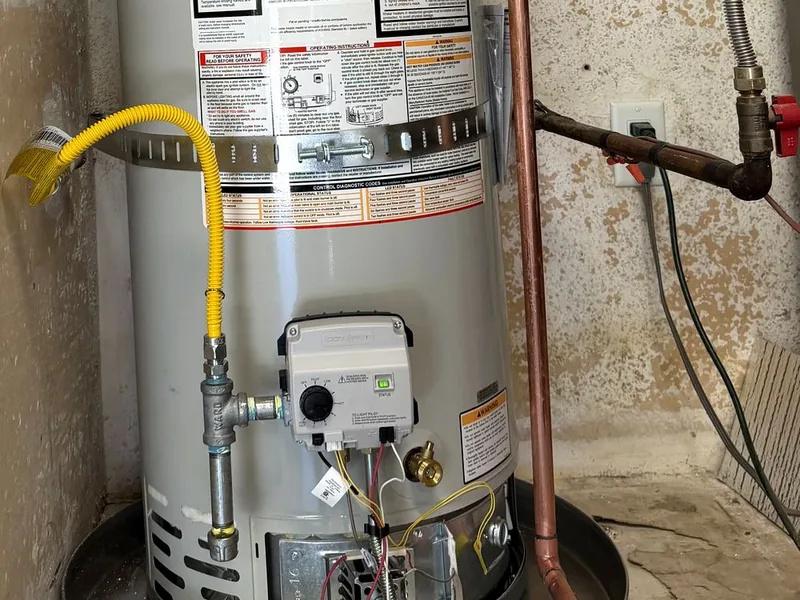

How a Pan Installation Works in Fountain Hills Homes
A pan installation on an existing heater in Fountain Hills is a half-day project done right. We shut off power or gas and close the cold-water inlet, then drain the tank enough to make it liftable — a full drain is rarely necessary, which saves the energy of reheating 50 gallons. With the water, gas, and vent connections detached, we lift the tank (two technicians and proper equipment; a drained 50-gallon tank still weighs over 150 pounds), set the new pan in place, position the tank centered in it, and reconnect everything: water lines, gas or electrical, venting, T&P discharge piping routed into the pan, and the pan's own drain line run to the exterior. Then we refill, purge air, relight or re-energize, and test every connection plus the pan drain itself.
Upscale planned community; 1970s-2000s homes, many with mountain views, larger lots. Famous fountain. Tight Fountain Hills, AZ 85268 installs — Hillside lots can complicate drainage and pan installs — take extra planning, and we measure clearances before we quote so there are no day-of surprises.
On a new heater installation, the pan goes in as part of the job with no extra disconnection labor, which is why we always recommend handling both together. Either way, the finish work is what separates a proper install from a pan dropped under a tank: we verify the tank sits level in the pan, the T&P discharge pipe terminates over the pan (not beside it, a defect we correct weekly), the drain line holds proper pitch with no sags that would trap water, and the exterior termination is visible and protected from pests. Serving Fountain Hills and surrounding areas — call (833) 713-2101 for pan installation done to last.
The Drain Line: The Part Most Fountain Hills Installs Get Wrong
Here is the uncomfortable truth from our service calls across Fountain Hills: most existing 'pan installs' we inspect have a pan with no working drain. Sometimes the drain line was never run. Sometimes it terminates inside a wall cavity or under the house, which is worse than no drain at all. Sometimes it was run but with uphill sections, sharp 90-degree elbows, or a termination buried in landscaping where nobody will ever see water coming out. A pan without a functioning drain is a shallow bowl — it buys you gallons of time, not a solution, and in an attic it will overflow into the ceiling just the same.
Affluent homeowners expect premium service and communication Hillside lots can complicate drainage and pan installs Those local realities are why we treat the drain line as the actual job and the pan as the easy part at Fountain Hills, AZ 85268 homes.
Our drain lines follow the rules that make them work for decades: minimum 3/4-inch pipe, continuous downward pitch to the termination, as few bends as possible, and termination outside the home at a visible location — typically near a hose bib or over a walkway where discharge can't go unnoticed. We use materials rated for hot water discharge, because T&P events send near-boiling water through that line. And we test it: we pour water into the finished pan and watch it exit outside before we call the job done. If your Fountain Hills heater has a pan but you've never seen where it drains, call (833) 713-2101 — we'll inspect it and make it right.
Fountain Hills-Specific Pan Considerations
The Fountain Hills housing stock sets the pan agenda: upscale planned community; 1970s-2000s homes, many with mountain views, larger lots. Famous fountain. Affluent homeowners expect premium service and communication
In Fountain Hills, very hard EPCOR water; high mineral content. Hillside lots can complicate drainage and pan installs Pan material and drain routing both get specified around those facts, not around a generic template — Shea Blvd, Saguaro Blvd, Fountain Park area homes vary enough that we quote from an on-site look, never from a phone description alone.
One final Fountain Hills note: monsoon season is pan season. Humidity spikes condensation drips, thermal expansion stresses T&P valves, and the first big storms reveal every marginal drain line. If your pan installation is on the to-do list, late spring — before the summer heat and storms — is the smartest scheduling window. Call (833) 713-2101 and we'll get your Fountain Hills home protected before the weather tests it.
Frequently Asked Questions
Does my water heater really need a drain pan?
If a leak at your heater's location would damage floors, walls, ceilings, or stored belongings, yes. In Fountain Hills, that covers attic installs, upstairs closets, units over finished rooms — and honestly most garage installs too, since garages hold a lot of value. Plumbing codes adopted across Arizona require pans where leakage would cause damage. Even where not strictly required, a pan with a working drain is the cheapest leak insurance you can buy. Call (833) 713-2101 and we'll tell you honestly whether yours needs one.
Can you add a pan under my existing water heater without replacing it?
Yes — we retrofit pans under existing heaters in Fountain Hills regularly. The tank gets disconnected, partially drained, lifted, and set into the new pan, then everything is reconnected and tested. It takes more labor than adding a pan during a replacement, but it's far cheaper than repairing leak damage. Upscale planned community; 1970s-2000s homes, many with mountain views, larger lots. If your current heater is over 10 years old, we'll give you straight advice on whether a pan-only visit or a combined replacement makes better financial sense. Call (833) 713-2101.
Plastic or metal pan — which is better in Arizona heat?
For Fountain Hills garages and attics that bake past 120 degrees, we generally recommend heavy-gauge aluminum: it handles heat and a full tank's weight without warping over the years. Quality thick-walled plastic pans are fine in milder locations and won't corrode, but thin cheap ones crack — and we've replaced plenty. Very hard EPCOR water; high mineral content. Either way, correct sizing and a proper drain line matter more than the material. We'll recommend the right pan for your specific install when you call (833) 713-2101.
Where does the pan drain line go?
Outside the home, to a visible location — that's both code and common sense. In Fountain Hills we typically terminate pan drains near an exterior wall by a hose bib or over a walkway where you'll notice discharge. The line needs continuous downward pitch, minimum 3/4-inch size, and heat-rated material since T&P discharges run near boiling. It must never terminate inside a wall, under the house, or somewhere hidden. If your pan's drain disappears into mystery, call (833) 713-2101 and we'll trace it and fix it.
How do I maintain the pan and drain after installation?
Twice a year in Fountain Hills: look in the pan for standing water (any means something's dripping — call us), and pour a gallon of water into the pan to confirm it drains freely outside. Keep the exterior termination clear of landscaping, mulch, and pest nests — monsoon debris clogs more pan drains than anything else. Hillside lots can complicate drainage and pan installs A two-minute check each spring and fall keeps the whole system ready. And if you ever see water exiting the drain line, call (833) 713-2101 right away: the pan did its job and now the heater needs attention.
